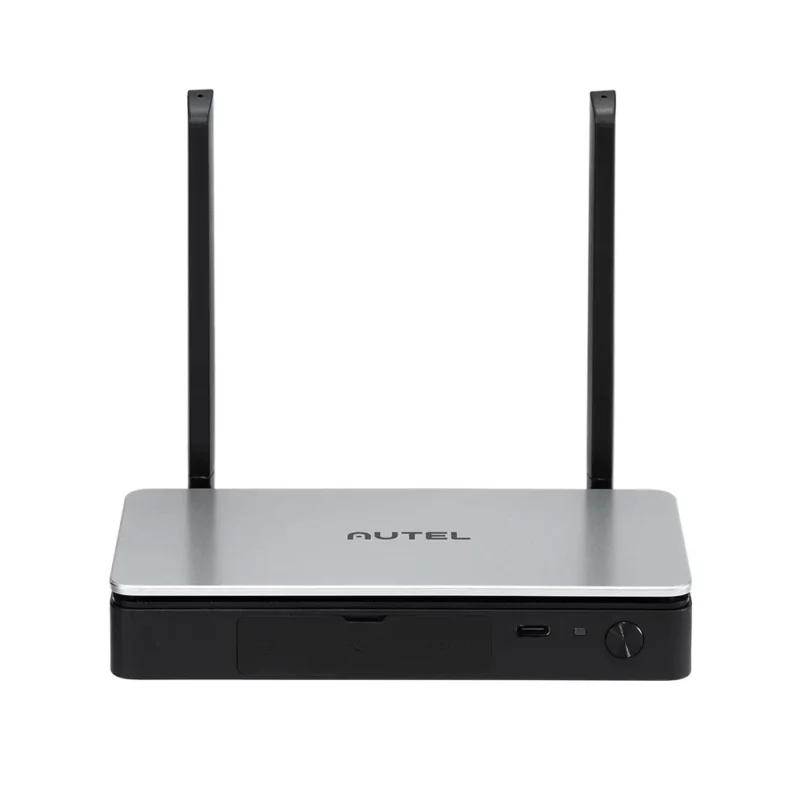

Autel Robotics Live Deck 2

Broadcast with Live Deck 2

Live Deck 2 (Android-based) transmits real-time full HD video to your TV, computer, and/ or multiple cell phones via Ethernet, HDMI interface, or livedeck generated WiFi. Adopted with upgraded image transmission technology, its anti-interference ability is 4 times greater than Live Deck 1. It supports 2.4GHz/5.8GHz/900MHz working frequency.

1080P/60FPS Video Stream

Three Auto-Switch Bands

Image/Video Transmission Range

5-Hour Battery Life

IP 43 Rated

Multi-Band Strong Transmission

Based on the SkyLink 2.0 image transmission system, Live Deck 2 can communicate with aircraft via 2.4GHz/5.8GHz/900MHz working frequencies. Adopted with a three-in-one antenna, the performance of the transmission, anti-EMI, low latency has improved greatly.

Advanced Signal Anti-Interference System

Do not let interference hinder your mission success. SkyLink 2.0 provides an updated and advanced anti-interference capability with its advanced algorithms and frequency hopping, you can always obtain consistent information with uninterrupted operation/workflow in difficult working environments.

* 900MHz working frequency is only applicable for FCC countries.

Add Your Heading Text Here

Connect with Multiple Phones

The Live Deck 2 can offer HD video streams up to 4 additional phones for advanced mission flexibility by Wi-Fi. No longer do you need a TV in the back of the squad car to broadcast the drone view.

Informational Security

The Live Deck 2 is a closed loop system. There are no servers, no external connection points. This provides maximum security over online options.

Buy, Set, and Forget

No accounts or additional subscriptions needed. Simply turn on the Live Deck 2 and match it with your EVO II V3 within a minute and enjoy the compatibility for good.

No Internet Needed

The Live Deck 2 does not need cell service. Can be operated with your V3 drone offline in remote areas.

Stream Anywhere

The Live Deck 2 supports multiple video output options, including HDMI, Wi-Fi *, and Ethernet, enabling users to view clear visuals to the device of their choosing.

* Wi-Fi streaming will be available through firmware upgrade later.

5-Hour Battery Life

Powered by a 6200mAh lithium battery, Live Deck 2 can run for up to 5 hours on a single charge. Once depleted, juice up anywhere using the micro USB port or a portable battery pack.

Live Deck 2 Specifications

Weight424.5g
Dimensions
152*111*23.2mm (antennas folded)
223.9*152*23.3mm (antennas unfolded)
BatteryName: Intelligent Li-ion battery
Capacity: 580OmAh
Voltage: 11.55V
Battery Type: Li-ion
Battery Energy: 67 Wh
Charging time: 120 min
Ingress ProtectionIP43
Operating Frequency
902-928MHz（FCC）
2.400-2.4835GHz
5.725-5.850GHz（Non-Japan）
5.650-5.755GHz（Japan Only）
Transmitter Power (EIRP)900MHz:
FCC<=33dBm
2.4GHz:
FCC/NCC<=33dBm; CE/MIC/SRRC/KC<=20dBm
5.8GHz/5.7GHz:
FCC/SRRC/NCC<=33dBm; KC<=20dBm; CE<=14dBm
Max Transmission Distance (unobstructed, free of interference)12km
Operating time5h
Operating Current/Voltage
1.3A/3.85V (not connected to smartphone)
Battery TypeLi-Po
Battery Capacity6200mAh
Rated Power5 W
Operating Temperature
14°F~104°F (-10°C~40°C)
Operating Humidity95%RH
HDMI
1080p@60 fps
Ethernet100M
Supported Aircrafts
EVO II Pro V3
EVO II Dual 640T V3
EVO II RTK Series V3
EVO II Enterprise V3
