DJI Mavic Enterprise Advanced front scaled

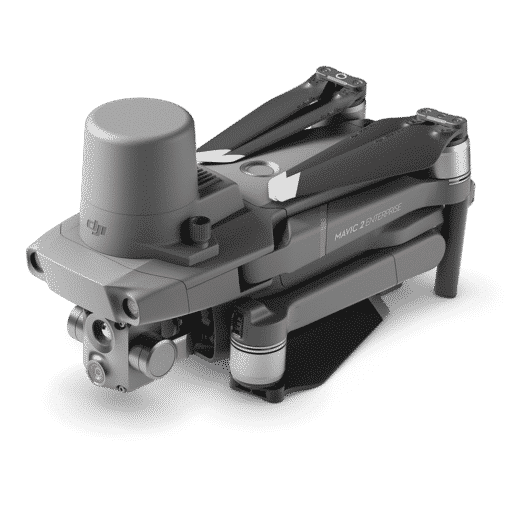

Mavic 2 Enterprise Advanced

640 × 512 px Thermal Camera
48MP Visual Camera
32× Digital Zoom

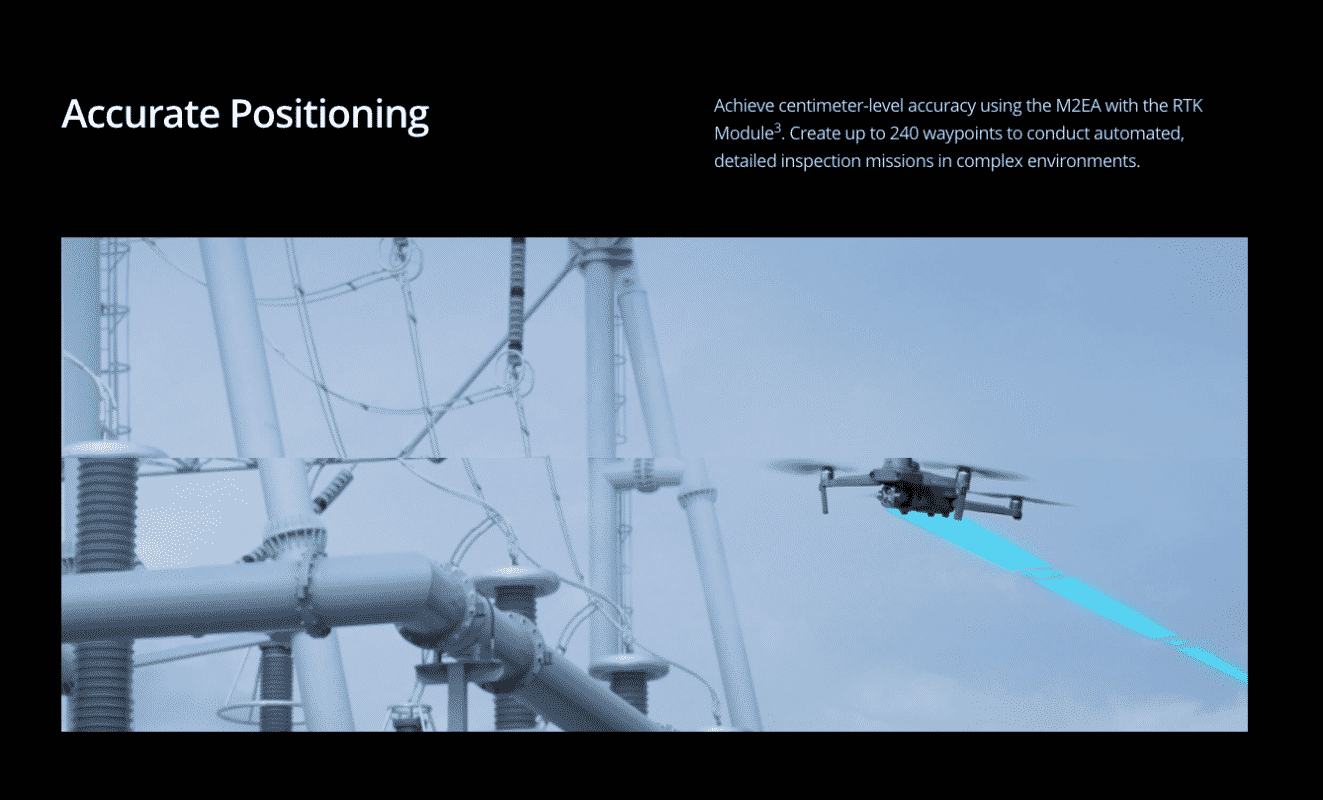

Centimeter-level Positioning with RTK
10 km Full HD Transmission
Omnidirectional Obstacle Sensing¹

Categories: Mavic 2 Enterprise, Drones, Mavic 2 Enterprise Advanced

Description
F.A.Q

Applications

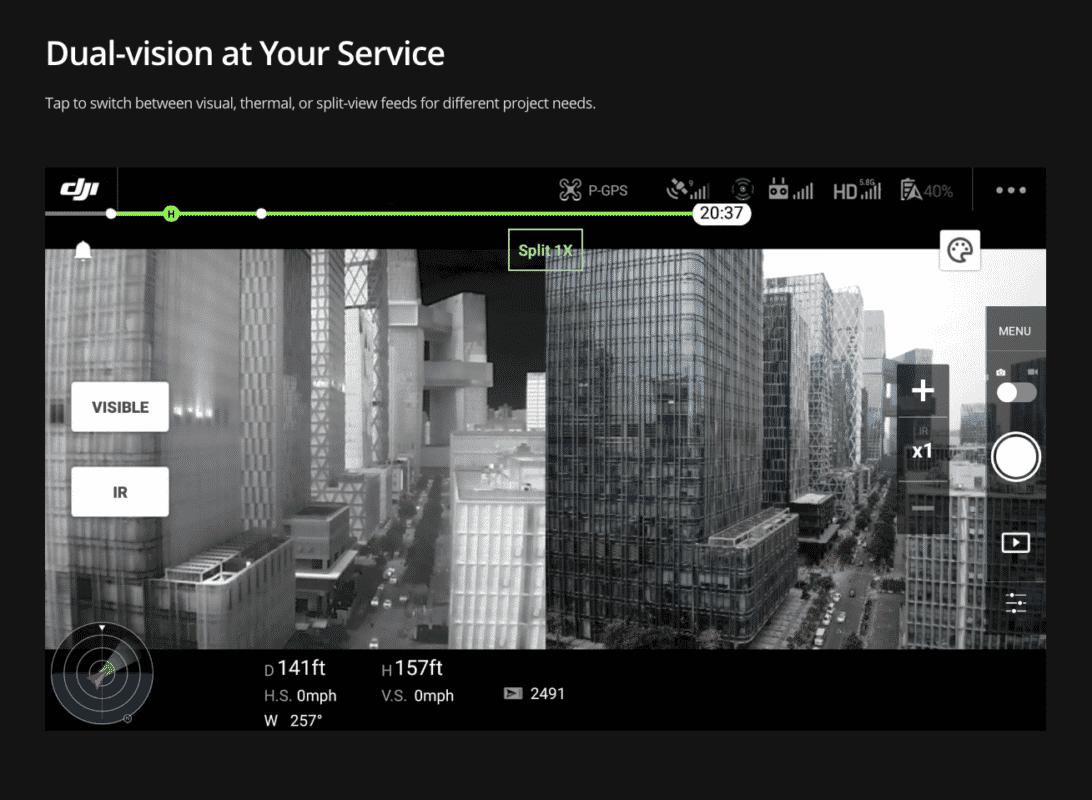

Dual Imaging, Reimagined

REQUEST A QUOTE FOR
DJI MAVIC 2 ENTERPRISE ADVANCED

The manufacturer does not allow us to advertise this product’s price online.
Please Register or Login to view pricing

You can also fill out the form below or give us a call at 800.918.9128
Our team will be happy to answer any questions you might have.

Note: It looks like JavaScript is disabled in your browser. Some elements of this form may require JavaScript to work properly. If you have trouble submitting the form, try enabling JavaScript momentarily and resubmit. JavaScript settings are usually found in Browser Settings or Browser Developer menu. .rm_next_btn {display:none !important} .rm_noscript_btn {display: block !important}

Aircraft

Is there optical zoom on the visual camera of the M2EA?

No. The M2EA's visual camera supports 32× digital zoom.

Does the M2EA support swappable cameras? Can I swap the camera for the one from the M2E Series drones?

Camera swapping is currently not supported.

When the M2EA is on a waypoint mission, mapping mission, or oblique mission, will the thermal camera take images as well?

Yes. Two types of images (visual and thermal) will be stored on the SD card during these missions.

What's the difference between the M2E Advanced and the M2E Dual?

The M2EA is optimized for quick deployment in a variety of industrial applications. The thermal resolution has been improved to 640×512 px, and the resolution of the visual camera is 4 times better than the M2E Dual. In addition to the new RTK module, the flight performance and waypoint missions features have also been optimized in the M2EA.

Is the M2EA waterproof?

It is not. Please do not fly in the rain.

Remote Controller

Can the remote controller for the Mavic 2 Enterprise or Mavic 2 Enterprise Dual be used for the Mavic 2 Enterprise Advanced (M2EA)?

The DJI Smart Controller is compatible with all three models. But the Remote Controller (without screen) of M2E/M2ED does not support M2EA.

Software

Which app is the M2EA compatible with?

DJI Pilot (Android version) and third-party apps developed using the DJI MSDK.

Can I measure the temperature on thermal images taken using the M2EA in post-processing?

Yes. More details on the post-processing software are coming soon.

How many waypoints can I set in a mission?

With optimizations made on waypoint missions, you can set up to 240 waypoints in each mission.

Will the M2EA support the iOS version of DJI Pilot?

No.

Can I add a timestamp watermark to the photos taken by the M2EA?

Yes, this is supported in the visible light photos only.

How do I run a firmware upgrade on the M2EA?

1. Connect to a computer and use DJI Assistant 2 For Mavic to upgrade the firmware for the aircraft and the remote controller;
2. Run the upgrades on the DJI Pilot App.

Does FlightHub support the M2EA?

No.

Can I use the M2EA for aerial surveying?

M2EA was not designed specifically to meet the accuracy requirements for aerial surveying, but you can use the visible light or infrared cameras to capture images in Mapping missions in the DJI Pilot App.

Accessories

Which accessories from the Mavic 2 Enterprise Series are compatible with the M2EA?

The protector case, speaker, spotlight, beacon, extended port cover, accessory bag, batteries, propellers, chargers, and charging station can be used for the Mavic 2 Enterprise Series.

With the RTK module installed, does the M2EA still fit into the protector case?

Yes.

Is the M2EA's RTK module compatible with the Mavic 2 Enterprise and Mavic 2 Enterprise Dual?

The RTK module is only compatible with the M2EA, and does not support the use with the M2E or M2ED.

Is PPK supported on the M2EA?

No.

Can the M2EA be used with the D-RTK 2 Mobile Station for the Phantom 4 RTK or for the Matrice Series?

The M2EA is currently not compatible with the D-RTK 2 Mobile Station. Please connect to an NTRIP network.

Specs

Mavic 2 Enterprise Advanced

Aircraft

Takeoff Weight (Without Accessories)
909g

Max Takeoff Weight
1100g

Dimensions (L×W×H)
Folded: 214×91×84mm
Unfolded: 322×242×84mm
Unfolded+Spotlight: 322×242×114mm
Unfolded+Beacon: 322×242×101mm
Unfolded+Speaker: 322×242×140mm
Unfolded+RTK Module: 322x242x125mm

Diagonal Distance
354 mm

Max Ascent Speed
6 m/s (S-mode)
5 m/s (P-mode)
4 m/s (S-mode with accessories)
4 m/s (P-mode with accessories)

Max Descent Speed
Descend Vertically
5 m/s (S-mode)
4 m/s (P-mode)
Tilt
7 m/s (S-mode)
4 m/s (P-mode)

Max Speed
72 kph (S-mode, without wind)
50 kph (P-mode, without wind)

Max Service Ceiling Above Sea Level
6000 m

Max Flight Time
31 min (measured while flying at 25 kph in windless conditions)
28 min (RTK module attached)
29 min (with beacon turned on)
30 min (with beacon turned off)
24 min (with spotlight turned on)
28 min (with spotlight turned off)
27 min (with speaker turned on)
28 min (with speaker turned off)

Max Wind Speed Resistance
10 m/s (scale 5)

Max Tilt Angle
35°(S-mode, with remote controller)
25°(P-mode)

Max Angular Velocity
200°/s (S-mode)
100°/s (P-mode)

Operating Temperature
-10° to 40° C

GNSS
GPS+GLONASS

Hovering Accuracy Range
Vertical:
± 0.1 m (with RTK)
± 0.1 m (with Vision Positioning)
± 0.5 m (with GPS Positioning)
Horizontal:
± 0.1 m (with RTK)
± 0.3 m (with Vision Positioning)
± 1.5 m (with GPS Positioning)

Operating Frequency
2.400-2.4835 GHz;
5.725-5.850 GHz

Transmitter Power (EIRP)
2.400 - 2.4835 GHz
FCC: ≤26 dBm；
CE: ≤20 dBm；
SRRC: ≤20 dBm;
MIC: ≤20 dBm
5.725 - 5.850 GHz
FCC: ≤26 dBm;
CE: ≤14 dBm;
SRRC: ≤26 dBm

Internal Storage
24 GB

M2EA Thermal Camera

Sensor
Uncooled VOx Microbolometer

Focal Length
Approx. 9mm
35 mm format equivalent: Approx. 38mm

Sensor Resolution
640×512 @30Hz

Digital Zoom
16 ×

Pixel Pitch
12 μm

Spectral Band
8-14 μm

Photo Format
R-JPEG

Video Format
MP4

Metering Method
Spot Meter, Area Measurement

FFC
Auto/Manual

M2EA Visual Camera

Sensor
1/2” CMOS, Effective Pixels: 48 M

Lens
FOV: 84°
35 mm format equivalent: 24 mm
Aperture: f/2.8
Focus: 1 m to ∞

ISO Range
Video: 100-12800 (auto)
Photos: 100-1600 (auto)

Digital Zoom
32×

Max Image Size
8000×6000

Still Photography Modes
Single shotInterval: 2/3/5/7/10/15/20/30/60 s
Panorama: Sphere

Video Resolution
3840×2160@30fps
1920×1080@30fps

Photo Format
JPEG

Video Format
MP4

Gimbal

Mechanical Range
Tilt: -135°- +45°
Pan: -100°- +100°

Controllable Range
Tilt: -90°- +30°
Pan: -75°- +75°

Stabilization
3-axis (tilt, roll, pan)

Max control speed
120°/s

Angular Vibration Range
±0.005°

Sensing System

Sensing System
Omnidirectional Obstacle Sensing[1]

Forward
Precision Measurement Range: 0.5 - 20 m
Detectable Range: 20 - 40 m
Effective Sensing Speed: ≤ 14m/s
FOV: Horizontal: 40°, Vertical: 70°

Backward
Precision Measurement Range: 0.5 - 16 m
Detectable Range: 16 - 32 m
Effective Sensing Speed: ≤ 12m/s
FOV: Horizontal: 60°, Vertical: 77°

Upward
Precision Measurement Range: 0.1-8 m

Downward
Precision Measurement Range: 0.5 -11m
Detectable Range: 11-22 m

Sides
Precision Measurement Range: 0.5 - 10 m
Effective Sensing Speed: ≤ 8m/s
FOV: Horizontal: 80°, Vertical: 65°

Operating Environment
Forward, Backward and Sides:
Surface with clear pattern and adequate lighting
(lux > 15)
Upward: Detects diffuse reflective surfaces(>20%)
(walls, trees, people, etc.)
Downward: Surface with clear pattern and adequate lighting
(lux > 15)Detects diffuse reflective surfaces (>20%)
(walls, trees, people, etc.)

Remote Controller

Operating Frequency
2.400 - 2.483 GHz;
5.725 - 5.850 GHz

Max Transmission Distance (unobstructed, free of interference)
2.400 - 2.483 GHz; 5.725 - 5.850 GHz
FCC: 10000m
CE: 6000m
SRRC: 6000m
MIC: 6000m

Transmission Power (EIRP)
2.400-2.4835 GHz：
25.5 dBm（FCC）；18.5 dBm（CE）19 dBm（SRRC）；18.5 dBm（MIC）
5.725-5.850 GHz：
25.5 dBm（FCC）；12.5 dBm（CE）18.5 dBm（SRRC）

Storage
ROM 16GB + microSD Extensible Storage

Video Output Port
HDMI Port

Built-in Battery
Type: 18650 Li-Po （5000 mAh @ 7.2 V）
Charging Mode: Charged with USB charger at 12V/2A
Rated Power 15 W
Charging time: 2 hr (with a USB charger at 12V/2A)

Operating Current/Voltage
1800mA ⎓ 3.83V

Battery Life
Built-in Battery Approx. 2.5 hr

Operating Temperature
-20° C - 40° C

RC Size
Folded without Joystick: 177.5 x 121.3 x 40 mm
Unfolded with Joystick: 177.5 x 181 x 60 mm

Weight
Approx. 630 g

Intelligent Flight Battery
Main Link: 17.6V ⎓ 3.41A or 17.0V⎓3.53A
USB: 5.0 V ⎓ 2.0 A

RTK Module

Dimensions
69 mm x 69 mm x 59mm

Connections
Micro USB Port

RTK Positioning Precision
In RTK FIX
1cm+1ppm (Horizontal)
1.5cm+1 ppm (Vertical)

M2EA Spotlight

Dimensions
68×60×41mm

Connections
Micro USB Port

Operating Range
30 m

Power
Max 26W

Illuminance
FOV17°, Max: 11lux @ 30m Straight

Intelligent Flight Battery

Capacity
3850 mAh

Voltage
15.4V

Max Charging Voltage
17.6V

Battery Type
LiPo

Energy
59.29 Wh

Net Weight
297g

Charging Temperature
5℃ - 40℃

Operating Temperature Range:
-10℃ - 40℃

Heating Methods:
Manual Heating, Auto Heating

Heating Temperature
-20℃ - 6℃

Heating duration
500s (Max)

Heating Power
55W (Max)

Charging Time
90 mins

Max Charging Power
80W

M2EA Beacon

Dimensions
68mm×40mm×27.8mm

Connections
Micro USB Port

Power
Avg. 1.6W

Controllable Range
5000 m

Light intensity
Min Angle: 55 cd;
Light intensity: 157cd

APP / Live View

Video Transmission System
OcuSync 2.0

Mobile App
DJI PILOT(Android Version)

Live View Quality
Remote Controller:
720p@30fps / 1080p@30fps

Max Live View Bitrate
40Mbps

Latency
120 - 130 ms

Required Operating System
ios 10.0 or later Android 5.0 or later

M2EA Speaker

Dimensions
68×55×65 mm

Connections
Micro USB Port

Power
Max 10W

Decibel
100 db @ 1 meter distance

Max Bitrate
16kbps

SD Cards

Supported SD Cards
Micro SD™
Supports a microSD with capacity of up to 128 GB.
A UHS-I Speed Grade 3 rating microSD card is required.

Others

Footnotes
[1]Omnidirectional Obstacle Sensing includes left/right, up/down, and forward/backward obstacle sensing. Sensing for left/right directions is only available in Tripod Mode. Omnidirectional Obstacle Sensing does not fully cover the circumference of a 360-degree arc. And left and right obstacle sensing system only works in specific modes and environments. DJI warranty does not cover any loss caused by crashing when flying left or right, even when Tripod mode is activated. Please be aware of your surroundings and App notifications when operating the Mavic 2 to ensure safety.
