Autel Robotics EVO Max 4N – Advanced Night Vision & AI Thermal Drone
Now available, the Autel EVO Max 4N is the most capable drone in the EVO Max series—engineered for night operations, critical public safety tasks, infrastructure inspections, and enterprise-grade aerial data capture. With next-gen AI, low-light imaging, thermal sensors, and encrypted mesh networking, this drone sets a new standard in tactical UAV performance.

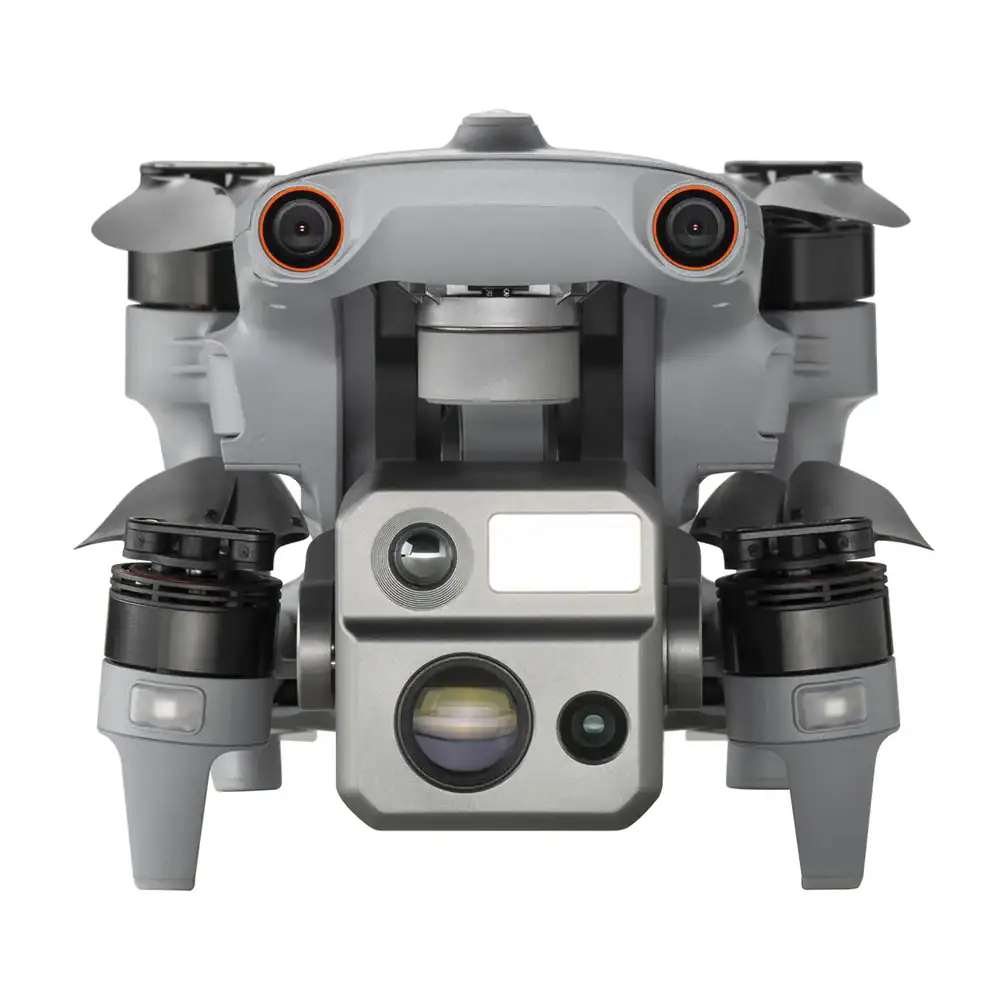

FusionLight Multi-Sensor Gimbal – Unmatched Vision Day or Night
The EVO Max 4N features a multi-payload gimbal combining:
- Starlight Night Vision Camera – 2.3MP, ISO 450,000, ultra-low light performance (0.0001 lux)
- 50MP Wide-Angle Camera – 1″ CMOS, 4K UHD video, 85° FoV
- Thermal Camera – 640×512 resolution, 16x zoom, temp range –20°C to 150°C (up to 550°C extended)
- Laser Rangefinder – Measures 5m–1.2 km, with ±(1m + 0.15%) accuracy
Perfect for search and rescue, covert surveillance, firefighting, and energy inspections – you can see through smoke, darkness, fog, and heat.
AI Autonomy and Smart Mission Execution
The EVO Max 4N excels in semi-autonomous flight:
- Real-time Object Detection and Tracking
- Auto Path Finding + Visual Navigation in GPS-denied areas
- Supports Polygon, Corridor, Waypoint, Vertical Scan, Spiral, Terrain Follow, and Oblique Missions
- Features like Quick Missions, 3D Map Planning, Mission Reproduction ensure repeatable, efficient operations
- Fully integrated with the Autel Enterprise App + Autel SDK
Safety First: Obstacle Avoidance + Anti-Jamming
- 720° Obstacle Avoidance (binocular vision + mmWave radar)
- Triple interference protection against RFI, EMI, and GPS spoofing
- Weather Rating: IP43, Operates in –4°F to 122°F environments
Autel A-Mesh 1.0 & SkyLink 3.0 Transmission System
- A-Mesh 1.0: Drone-to-drone mesh network for team missions
- SkyLink 3.0: 12.4-mile range with AES-256 encryption, multi-band (900MHz/2.4GHz/5.2GHz/5.8GHz), <150ms latency
- Optional RTK Module for ultra-precise geolocation
Payload Expansion + Enterprise Accessories
- Modular Top-Mounted Payload Bay for 3rd-party sensors or lights
- Smart Controller V3: 7.9″ 2000-nit display, 128GB internal storage
- Compatible with Live Deck 2 (for multi-view streaming) & EVO Nest (automated deployment + charging station)
Military-Grade Data Protection
- No cloud syncing by default – data is stored locally
- Secure your files with AES-256 encryption and strong password authentication
- Ideal for government, law enforcement, and critical infrastructure operations
Flight Specs & Performance
- Flight Time: Up to 42 minutes
- Top Speed: ~51 mph (23 m/s)
- Wind Resistance: Up to 27 mph (12 m/s)
- Max Altitude: 23,000 ft above sea level
- Deployment: Ready to fly in under 15 seconds
Why Choose the EVO Max 4N?
From thermal mapping to tactical night ops, the EVO Max 4N is purpose-built for demanding enterprise scenarios. It blends AI-powered autonomy, real-time obstacle avoidance, night-time vision, and encrypted communications in one ultra-capable UAV.
Autonomous Path Finding
Autel’s Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.
Navigation in GPS Denied Environment
Advanced sensors allow the EVO Max 4N to navigate within hardened structures, underground, or in environments without GPS.
Accurate Object Identification and Tracking
Based on Autel’s AI recognition technology, the EVO Max 4T can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement.
Ultimate Obstacle Avoidance
EVO Max 4N is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4N’s onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.
Anti Jam, Anti Interference
The EVO Max 4N uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max 4N to fly confidently near power lines, critical structures, and in complex areas.
Weather Rating-IP43
The EVO Max 4N with IP43 Ingress Protection rating, it means Max 4N is protected against solid objects greater than 1mm and against sprays of water up to 60 degrees from the vertical.
Platform Capability
EVO Max 4N redefines portability with its powerful platform and all weather design.
42 Minutes
Maximum Flight Time
2300 Feet
Service Ceiling
12.4 Miles
Image Transmission Range
27 mph
Maximum Wind Resistance
Hot-Swappable Battery
Autel Max 4N hot-swappable battery system, which allows for extended flight times without the need for downtime. This system allows users to easily swap out batteries while the drone is still in operation, making it ideal for use in time-critical applications where every second counts.
Autel Autonomy
EVO Max 4N is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4N’s onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.
Binocular Vision System
Millimeter Wave Radar
A-Mesh 1.0
The Drone Industry’s First Mesh Networking Technology
EVO Max 4N features the new A-Mesh system, enabling drone-to-drone autonomous communication, connection, and collaboration.
Autel SkyLink 3.0
The EVO Max 4N SkyLink 3.0 system comes with 6 antennas, 4 frequency bands, AES-256 encryption*, and optional 4G integration* to provide users with the most advanced flight capabilities ever in an EVO.
This feature will be available in a future update. **5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.
